AI-assisted control panel design
From a parts list
to a wired panel.
Upload a Bill of Materials. Revo identifies parts, proposes a layout, and generates a manufacturable, wired schematic — with human approval at every AI step.
Why Revo
The engineering is yours.
The drafting isn't.
Revo doesn't take over the judgment calls in a panel design — it takes out the hours around them. Same five stages, same decisions, far less drawing.
Layout
10h9mper panel02 / 05
10h9mper panel
On your own
Components placed one at a time, with fit problems surfacing late.
With Revo
A full placement arrives sized and labeled, enclosure checked.
Wiring
12h6mper panel03 / 05
12h6mper panel
On your own
Sheets drafted by hand — wire numbers, cross-references, terminals.
With Revo
One netlist call, then fixed logic draws every sheet.
Revisions
6h5mper panel04 / 05
6h5mper panel
On your own
A late change means re-drawing everything downstream.
With Revo
Regenerate — layout and schematic stay in step, byte for byte.
Handoff
05 / 05
On your own
Drawings reworked and re-exported to get something buildable.
With Revo
Layout and schematic leave together, ready for the floor.
Worked example120 panels a year at $85/hour, against a measured Revo run of 50m a panel
34h50m
Engineering hours per panel
3,980h
Reclaimed across the year
$337,146
Net of the $1,188 subscription
Not your numbers? Change them Every reduction in the calculator is an assumption you control — not a claim we make.
Design Creation Pipeline
01 / 06BOM in
Upload
Drop your Bill of Materials, map columns, review parsed rows. Optionally attach a spec doc and pick an enclosure.
Parts Revo has seen before are matched instantly — no AI cost spent.
Human-in-the-loop guarantee. The design cannot silently advance past a step that still needs a decision from you.
Playground
A full-screen
CAD-style workspace.

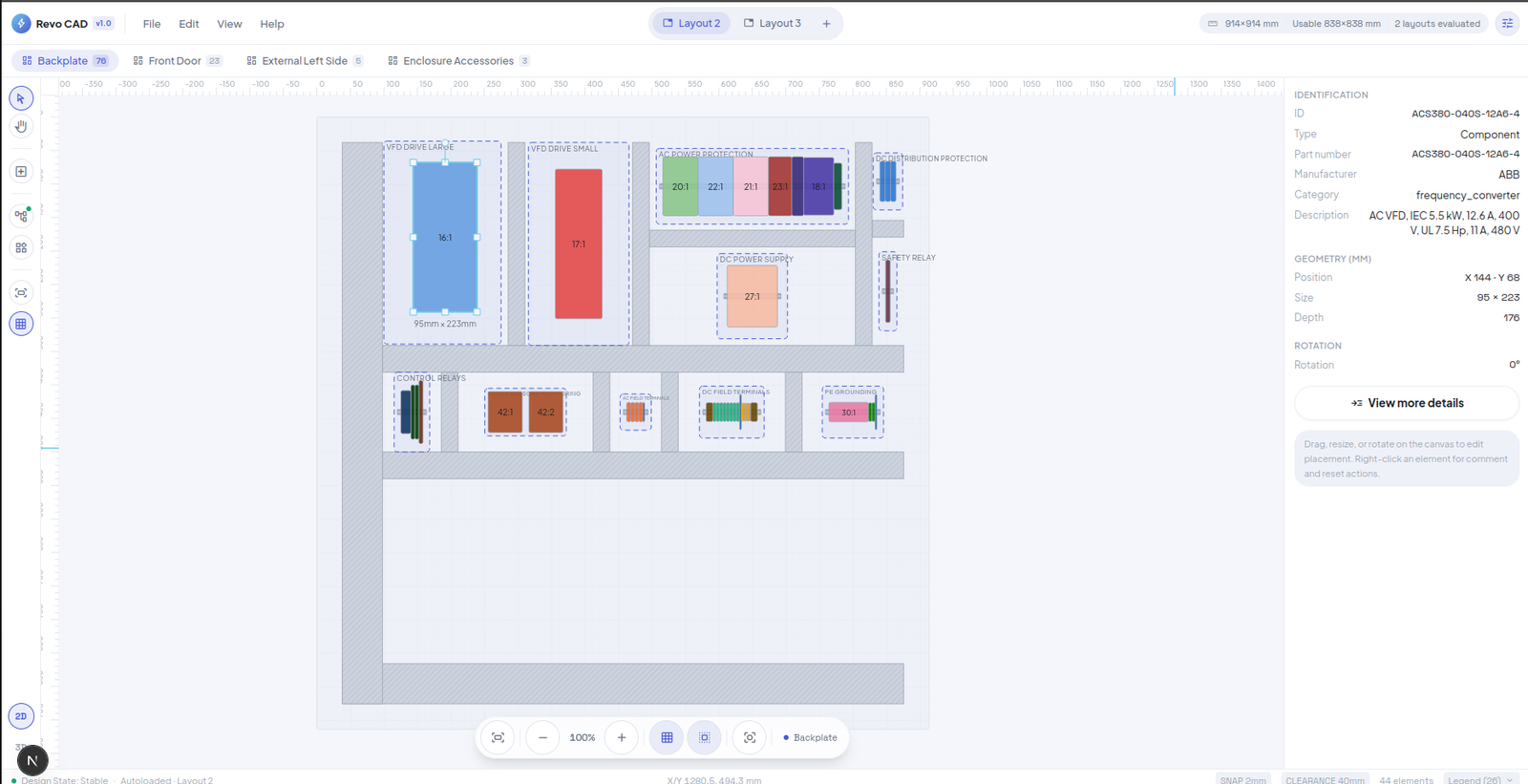

Every component starts already placed, sized, and labeled — your job is to refine, not originate. Pick any tool on the right to watch it run.
Direct manipulation
Editing

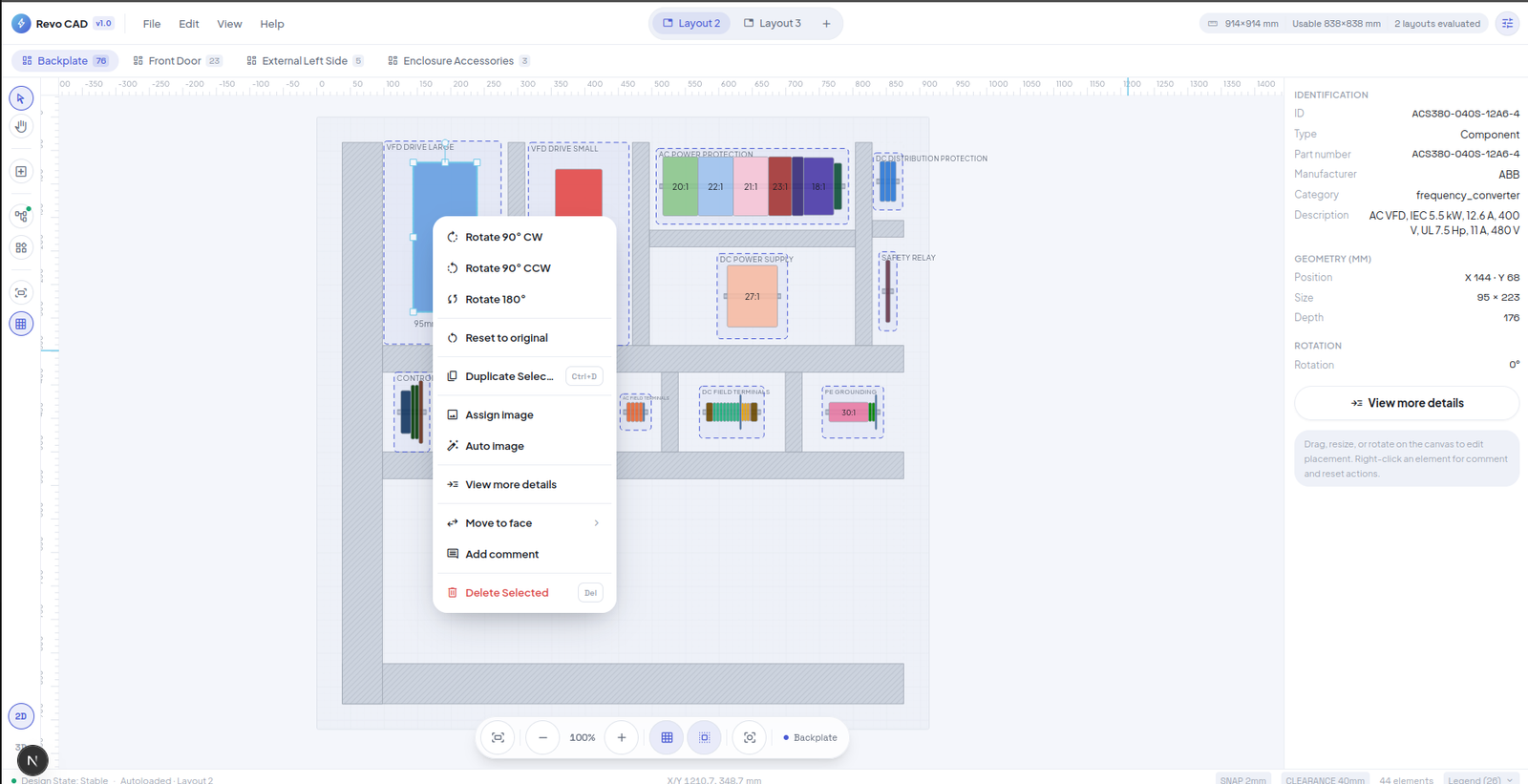

Pick a component up and put it where it belongs — across faces, at any size, at any of four orientations. Nothing is destructive; every step walks back.
- Drag between faces
- 8-direction resize
- 90° / 180° rotate
- Duplicate & delete
- Undo / redo
Nothing here is one-way. Undo, redo, and reset-to-AI-baseline cover every action on this list.
Wiring
Deterministic.
Not re-imagined.
AI runs exactly once, to resolve the netlist — what connects to what. Everything after that is fixed logic: page layout, symbols, wire numbers, cross-references. The schematic is generated, never re-imagined.
- Regenerate from the same netlist and every line lands in the same place — byte for byte.
- An AI slowdown or failure can't corrupt the schematic. Wiring retries on its own.
- Nothing is guessed at view time, so every symbol traces back to a connection you approved.
1×
AI call, for the netlist only
100%
Byte-for-byte reproducible
05
Sheet types generated
Power Control Field I/O Terminal Grounding
The schematic is regenerated from connection data, so the whole set — sheets, schedules and BOM — can be exported on demand.
Built to be trusted
Confident AI in a
safety-relevant workflow.
01
End-to-end automation
One connected journey from parts spreadsheet to wired, manufacturable panel — no re-entry between stages.
02
Human-in-the-loop at every AI decision
The design can never silently advance past a step that still needs a person's judgment.
03
Deterministic, auditable wiring
AI proposes connections once; the diagram is generated by fixed logic every time — always reproducible.
04
Fast by default, safe to trust
Most projects start from an AI baseline that only needs review — not manual drafting from scratch.
05
Enterprise-ready
Multi-tenant architecture, role-based areas, dedicated admin tooling, and metered AI usage via credits.
Savings calculator
What does a panel
actually cost you?
Your volume, your rate, your hours. Every reduction below is an assumption you control — move them to match what you believe, not what we claim.
1 · Panels per year
2 · Engineer rate ($/h)
3 · Hours per panel
4 · Minutes per panel with Revo50m
Revo's run time barely moves with how long the manual job would have taken, so this is an absolute figure rather than a percentage. The default is a measured end-to-end run.
Revo does not publish a measured time reduction. These percentages are editable starting points — the wiring default is highest because that stage is generated by fixed logic rather than drafted. Subscription cost uses the Scale plan.
Net annual saving
$337,112
after $1,188 / year for Revo (annual)
3,980 h
Engineering hours reclaimed
100×+
Gross saving vs cost
< 1 mo
Payback period
+4,775
Extra panels from freed hours
Hours per panel — today34 h
Hours per panel — with Revo50m
Saved per panel33 h
Annual engineering cost — today$346,800
Annual engineering cost — with Revo$8,500
Gross annual saving$338,300
Revo subscription− $1,188
Estimate only — not a contractual commitment.
Watch a BOM become
a wired panel.
A live 30-minute walkthrough on your own parts list. No pitch deck, no generic script.
